一、Model Description: RCDB

R - other magnetic separation equipment C - iron removal D - Electromagnetic B - manual discharge of natural cooling

Applicable conveyor bandwidth, unit mm

The maximum magnetic induction intensity of the corresponding geometric center of the magnetic pole at the rated height, unit mT, about 70mT is not marked

二、Structural characteristics：

1、Due to the adoption of a totally enclosed self cooling structure, the utility model can effectively prevent water, dust and corrosion, and is suitable for various working conditions.

2、Because of the temperature control technology of our company, to ensure the main performance parameters of magnetic field (IN) the same premise, increase the number of turns of the coil,

 3、reducing the current density, thereby greatly reducing the heat, effectively control the temperature rising of the iron remover, prolong the life of the iron remover.

4、The use of high-performance insulation materials, good insulation performance; the use of Magnesium Oxide as a filling medium, insulation, good heat dissipation.

三、Purpose：

This series of iron remover adopts fully enclosed structure, the magnetic field distribution is good on the whole working face, and the magnetic penetration depth is large, and the utility model is suitable for removing iron on belt conveyor with high speed and thick material layer. Easy to absorb ferromagnetic material mixed in non-magnetic material 0.1 ~ 35kg. For coal, mining, steel, chemicals, building materials, electric power and other industries from dry coal, coke and limestone, gravel and other raw materials to remove iron magnetic material to remove loose material in ferromagnetic materials.

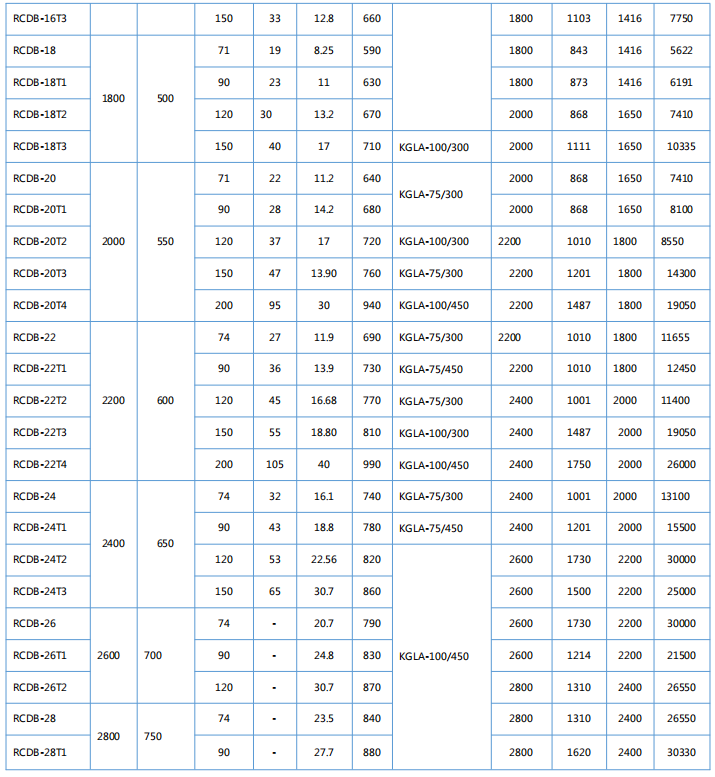

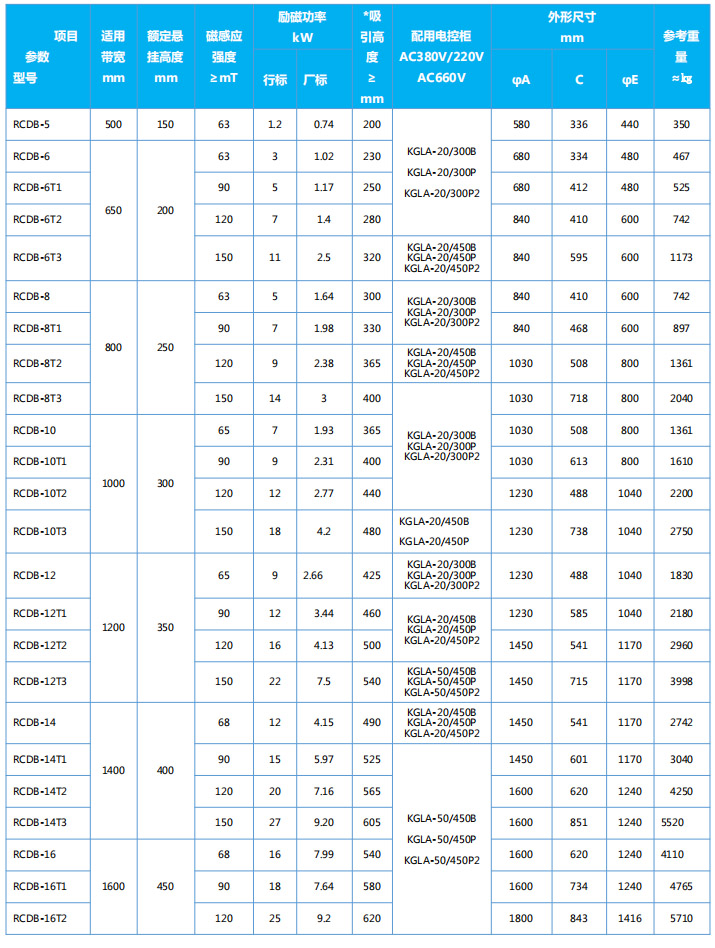

四、Main technical parameters and dimensions
