一、Model Description: RCYD

R - other magnetic separation equipment C - Y - permanent magnet D - automatic iron unloading

Applicable conveyor bandwidth, unit mm

The maximum magnetic induction intensity of the geometric center corresponding to the magnetic pole at the rated height, unit mT

二、Structural characteristics：

1、The rare earth NdfeB, known as "magnetic king", is used as the permanent magnetic material, and the magnetic circuit is designed by computer simulation.

2、High reliability, can be applied to any harsh environment.

3、Because there is no rectifying device, not affected by the quality of electrical components, there is no insulation and pressure problems;

4、The permanent magnetic system can maintain a constant magnetic field, and the magnetic system is cast by epoxy resin to form a whole, and no fault can be generated.

5、The problem of temperature rise in the electromagnetic iron remover is solved by the permanent magnetic iron remover. There is no cold and hot state magnetic separators electromagnetic, while maintaining a constant magnetic field, not like electromagnetic Separators as temperature decrease with increasing magnetic field strength, not because of power outages and loss of magnetic field, so power absorption in the separator on the iron will not fall back to the conveyor belt. Safe and reliable work.

6、In addition to the strong magnetic field, high gradient magnetic depth and large suction force, it has a good effect on the removal of iron or iron. Magnetic induction intensity is far from national standards.

三、Purpose：

Matched with a belt conveyer, used in metallurgy, mine, electric power, papermaking, sugar chemical, building materials and other industries, mainly used to remove mixed non-magnetic powder like material in the weight of ferromagnetic material 0.1-35kg.

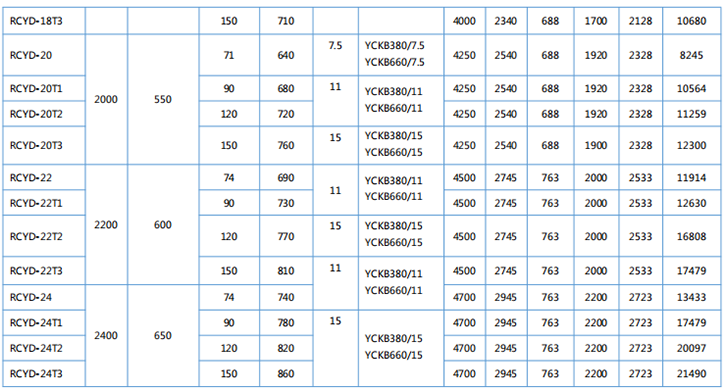

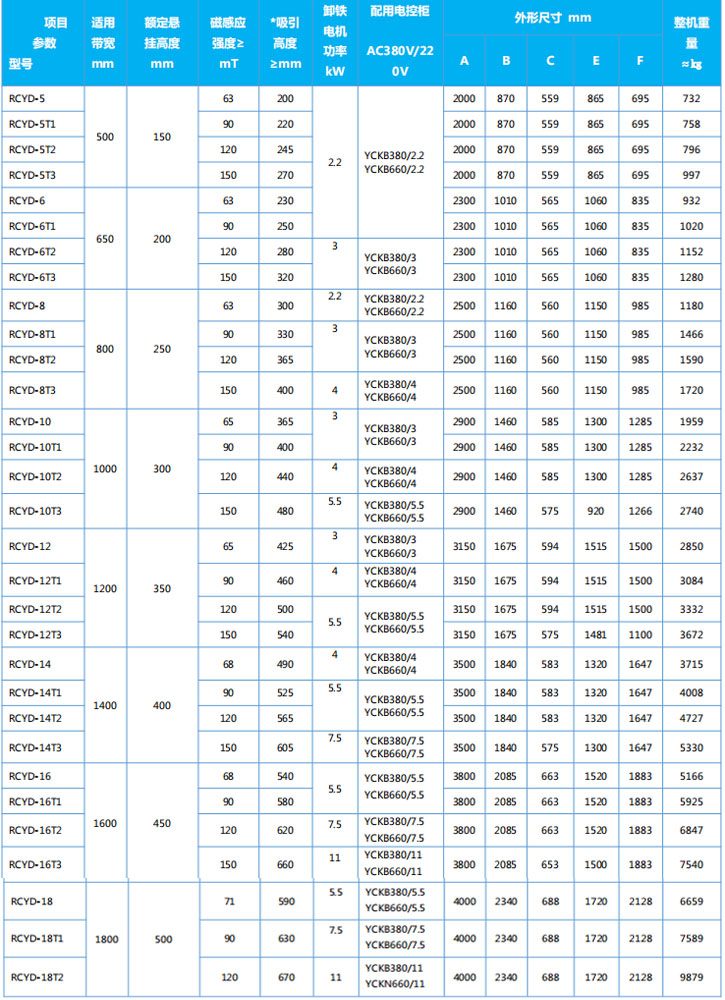

四、Main technical parameters and dimensions
