一、Model Description: RCDY-J

R - other magnetic separation equipment C - DY - electric and permanent magnet combined J - recovery

Applicable conveyor bandwidth, unit mm

二、Structural characteristics：

1、Type RCDY-J series suspension electromagnet and permanent magnet combination recovery type separator is developed for iron and steel factory, terminals and other industries in the process of iron ore and iron ore Recyclable and a new type of magnetic iron removing equipment. It sets the iron absorption, iron ore, iron ore recovery and waste separation functions, the whole process separately in space and in time can be uninterrupted, not because of iron removal and cause the system to stop production; it can realize the program control and belt conveyor chain, automatic work; it is matched with a metal detector, in addition to iron in short time, and help to improve work efficiency. The utility model has the advantages of simple structure, safety and reliability, convenient maintenance and repair, and permanent magnet structure. The utility model has the advantages of energy saving, consumption reduction and maintenance cost reduction.

2、The separator consists of main engine, control cabinet and other components, and supporting the use of metal detectors, separator and metal detector distance according to the material conveyor speed and 8-10 seconds, ensure the electromagnetic separator to achieve the best effect of iron absorption.

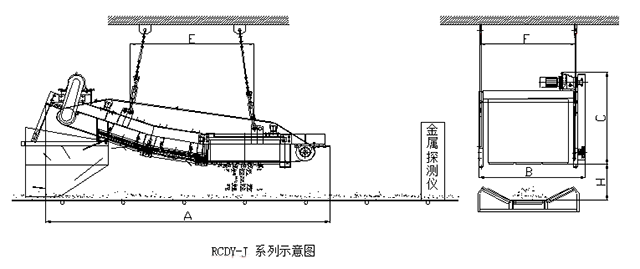

3、The host machine is composed of an adsorption part, a transition part, a separation part, an iron removing part, a hanging component and a discharging mechanism.

4、The adsorption part is an electromagnet, and the transition part, the separation part and the iron removing part are made of permanent magnets.

三、Purpose：

Widely used in iron and steel, metallurgy, coal, mining, cement, ports, electricity and other industries. It is generally with a metal detector used for belt conveyor in ore and other bulk solid magnetic material removed in the process of conveying steel parts contained in the material, in order to prevent the conveyor belt is torn and steel protection process equipment from damage.

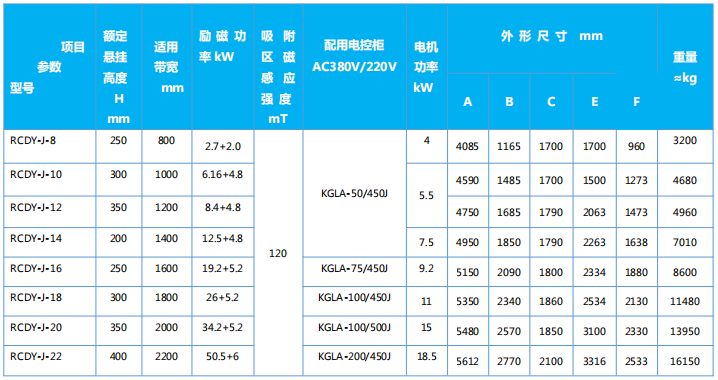

四、Main technical parameters and dimensions
