一、Model Description: CTGY

C - T - box type G - magnetic roller Y - permanent magnet type

Magnetic field strength series

Outer flange width, unit mm

Outer flange width, unit mm

二、Structural characteristics：

1、The use of high-performance rare earth permanent magnet materials and industrial pure iron as raw materials, the use of stainless steel shell material. The magnetic induction intensity of the permanent magnetic roller surface is more than 8000 Gauss, the magnetic field gradient is very large, and the weak magnetic material can be absorbed

2、All permanent magnet structure excitation does not consume electricity, the surface magnetic induction intensity is large, the magnetic field gradient is very large, the weak magnetic material has very good capture effect, in addition to high net safe and reliable.

3、The host machine is composed of an adsorption part, a transition part, a separation part, an iron removing part, a hanging component and a discharging mechanism.

4、Beautiful appearance, compact structure, strong, not easy to damage, long service life, 15 years demagnetization will not exceed 5%.

三、Purpose：

The utility model relates to an automatic iron removing device, which is suitable for sucking out ferromagnetic materials in various powdery and granular materials.

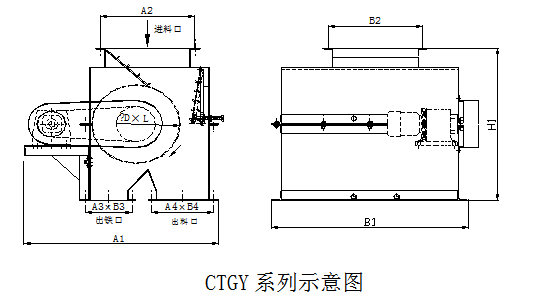

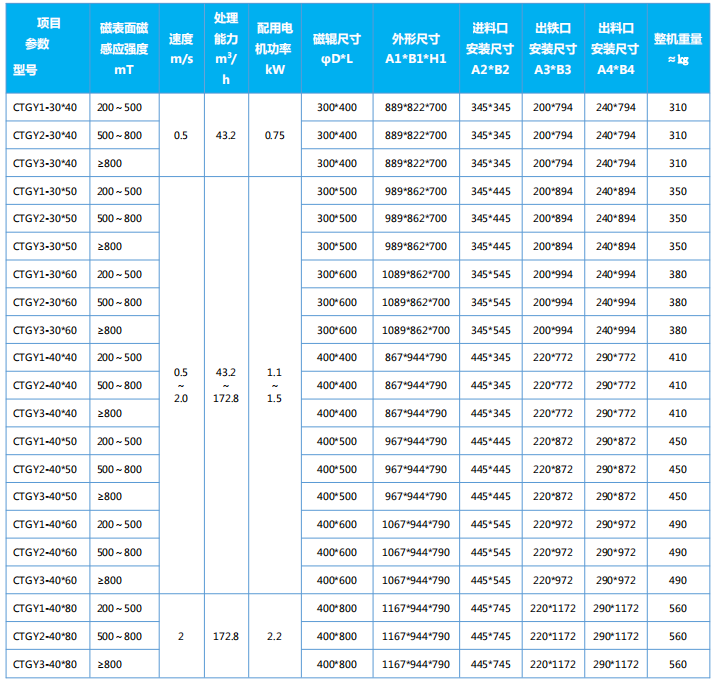

四、Main technical parameters and dimensions
