一、Model Description: JLYC

JL - chute type Y - permanent magnet type C - iron remover

Type: straight chute marked X tilt

Outer flange width, unit mm

Outside diameter of connecting flange, unit mm

二、Structural characteristics：

1、The rare earth NdFeB material has strong magnetic field and deep magnetic field.

2、The utility model has the advantages of long service life, full stainless steel structure, and strong magnetic field depth and strength.

3、Easy to use, after the installation of this product, only regularly open the door to clean up the iron, no need to guard.

4、Safe and reliable: the utility model has the advantages of no energy consumption, no noise, no temperature rise and no electromagnetic radiation.

三、Purpose：

The user can choose different pipeline structure according to the following two types of separators (JLYC, JLYC-X), in addition to the series of iron for iron impurities on the pipeline in bulk materials in automatic separation, effectively improve the quality of products, widely used in non-ferrous metals, cement, coal, chemical industry, building materials, carbon food etc. industry. Artificial iron removal.

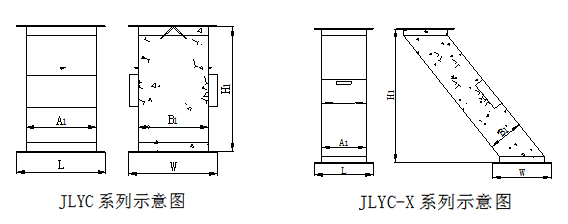

四、Main technical parameters and dimensions

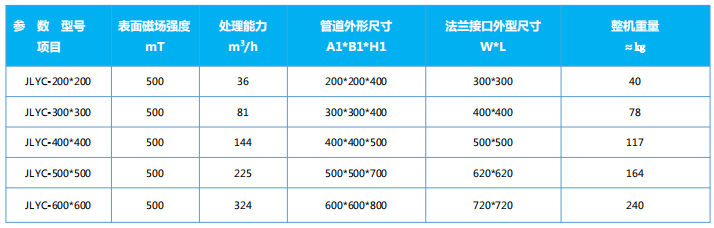

1.JLYC series of chute type permanent magnetic separators (zhiliu)

Note: according to user's needs, we can customize all kinds of special models and specifications

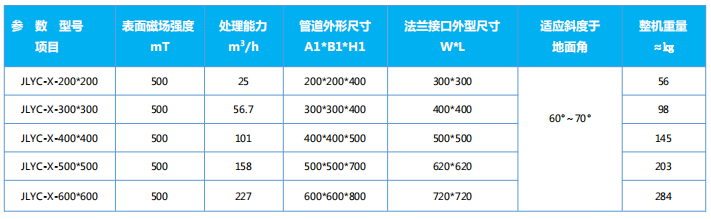

2.JLYC - X series chute type permanent magnet separator)

Note: according to user's needs, we can customize all kinds of special models and specifications
