一、Model Description: RCYB

R - other magnetic separation equipment - Y - Permanent Magnet - B - disc manual unloading of iron - C

Applicable conveyor bandwidth, unit mm

The maximum magnetic induction intensity of the geometric center corresponding to the magnetic pole at the rated height, unit mT

二、Structural characteristics：

1、The separator is developed by the company (Patent No. ZL 95239746.3) patent products, using rare earth NdFeB permanent magnetic material as magnetic circuit, using computer simulation and design, no excitation coil, temperature rise, no noise, absolutely safe, work without energy consumption.

2、The permanent magnetic system can maintain a constant magnetic field, and the magnetic system is cast by epoxy resin to form a whole, and no fault can be generated.

3、The utility model has the advantages of small size, light weight, convenient installation and operation, good iron absorption effect and long service life.

4、The method of unloading iron is simple, and the bottom of the iron remover is provided with a movable iron unloading scraper, when the suction iron is more, the utility model can be used to draw out the iron unloading scraper, and the iron can be removed!

三、Purpose：

Applicable to metallurgy, mining, electricity, paper, sugar, chemicals, building materials and other industries, and a lot of iron production line.

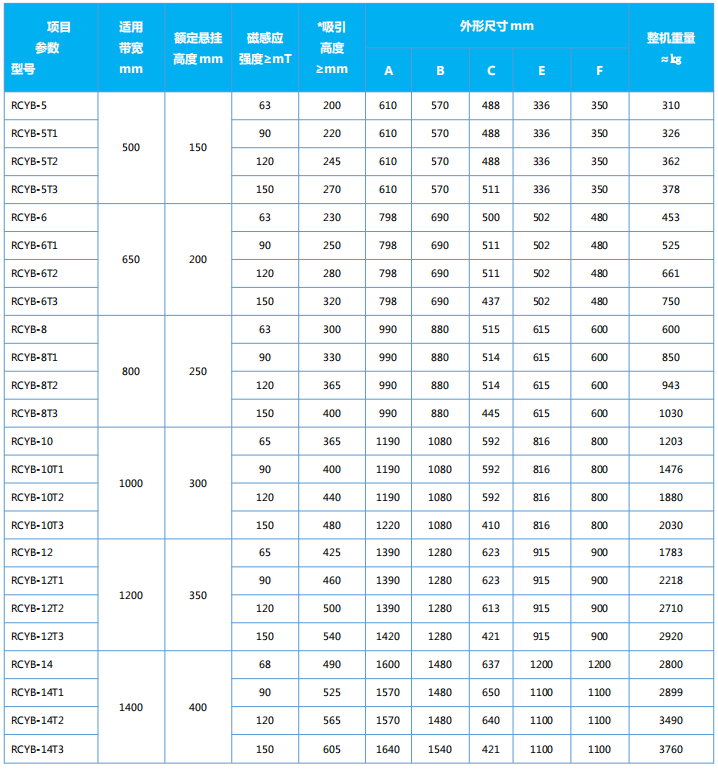

四、Main technical parameters and dimensions of RCYB series manual permanent magnet Separators
