一、Model Description: JLYZ

JL - chute type Y - permanent magnet type Z - automatic iron remover

Magnetic drive number: single magnetic drive is not marked, dual magnetic drive for S

Outside diameter of inlet connection flange, unit mm

Outside diameter of inlet connection flange, unit mm

二、Structural characteristics：

1、The chute type (pipe type, chute type) permanent magnet automatic iron remover is developed by our company according to the market demand.the separator is installed in the pipeline transportation, the iron impurities mixed in the materials in the automatic separation, can effectively improve the quality of the products, and realize the automatic unloading of iron, completely solve the permanent in addition to manual cleaning of pipeline magnetic iron iron.

2、Strong magnetic force; for a wide range of materials and pipeline according to user requirements, design of iron in addition to the different magnetic region length and magnetic field strength, the surface of the magnet and the magnetic induction intensity can reach 10000 mT; its shape can be suitable for all kinds of pipes and various bulk materials, and is not easy to plug;

3、Good sealing performance, the magnetic separator magnet part and the flow of material space are two independent closed cavities, ferromagnetic materials, materials and on-site dust not due to the magnetic force and the suspension effect into the magnet part, improves the utilization ratio of magnetic field, convenient use, long service life, low energy consumption, the chute (automatic) Deferrizater drive motor, no excitation power.

三、Purpose：

Widely used in non-ferrous metal smelting cement building materials, chemicals, food, feed and other industries, can be easily automated operations.

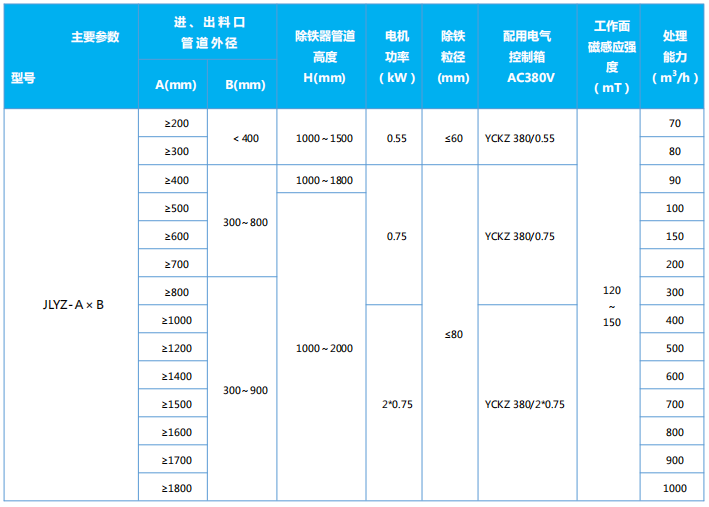

四、Product model, main technical parameters, pipe size

Note: according to user's needs, we can customize all kinds of special models and specifications
