Metal detector

JTZ series mine intrinsically safe type metal detection device is used for detecting the products of metal detection equipment series of coal mine belt conveyor in the production of the company, it is by the main engine, detection sensor and velocity sensor, joint monitoring sensor and flameproof and intrinsically safe uninterruptible power supply box five part related equipment. Suitable for conveying bulk materials in belt process, detection of hybrid transport to the belt at intermediate materials (including steel wire rope core belt) equipment metal iron harm, can accurately detect mixed in coal iron, steel, stainless steel, copper, aluminum, manganese and other kinds of metal debris, has a unique advantage in sensitivity adjustment of detector and overcome the influence of magnetic materials. Debugging personnel only in accordance with the instructions step, observation indicator light flicker, the detector can be easily adjusted to the best state. In addition to the alarm instructions on the machine, but also has an external output and indicating the location of metal debris, with the company's various types of iron and steel supporting the use of lower energy consumption, prolong the service life of iron. This series of products have been "mine safety certificate".

Ⅰ、Main technical index

1.1ZTD660/380 controller (security certificate number: MAB150948-MAB150951)

·Shell type: outdoor wall mounted double waterproof, dustproof, corrosion resistant stainless steel structure.

·Dimensions: 360 x 315 x 130

·Weight: 8.5Kg

·Power supply: Flameproof and intrinsically safe power supply relay box

·Power consumption: < 20W

·Ambient temperature: from-20 DEG C to less

·Applicable speed: 0.5 ~ 10.0m/s

·Detection count: 5 (00000 ~ 99999), manual reset

·rotection level: IP54

·Between the controller and the sensor cable length: 5m (standard)

1.2Sensor type GTD (security certificate number: MFB150281-MFB150287)

·Structure: single turn type detachable copper pipe

·Applicable bandwidth: 1200 ~ 2000mm

·Coating color: iron gray

·Detection sensitivity: see Table 1

JTZ series sensor detection sensitivity Table 1

Ⅱ、Installation and installation dimensions

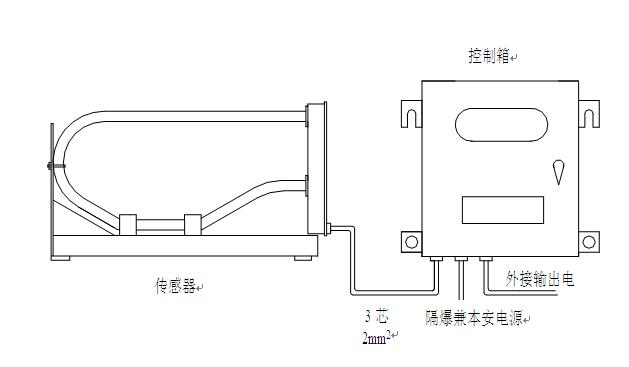

TZ series metal detector consists of two parts: the sensor and the controller. The relationship is shown in figure 1.

Figure 1 Composition of JTZ series metal detectors


Model: JTZ series -1200mm-2000mm, single turn brass detachable sensor specifications

JTZ series -1200mm-2000mm type sensor rated test sensitivity Table 2

JTZ series -1200mm-2000mm single turn copper tube detachable sensor configuration and mounting dimensions

Applicable to: 1200mm-2000mm belt conveyor belt width sensor configuration and size

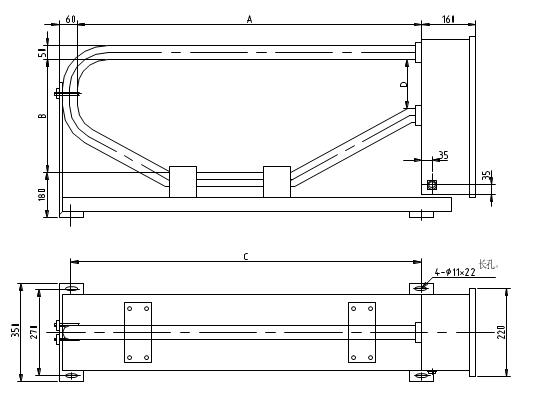

Figure 2 sensor figure of 1200mm-2000mm width conveyor belt

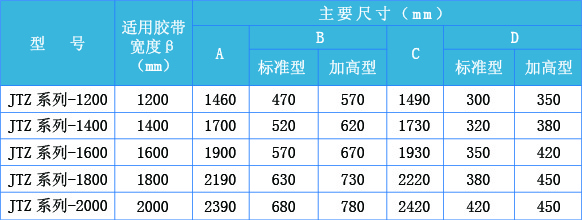

Figure 2 1200mm-2000mm width of the conveyor belt sensor contour JTZ series 1200mm-2000mm width conveyor belt sensor size table 3

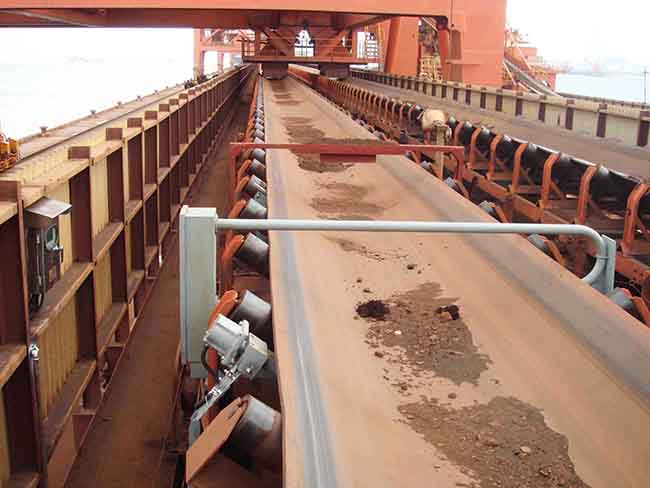

Application of metal detector
